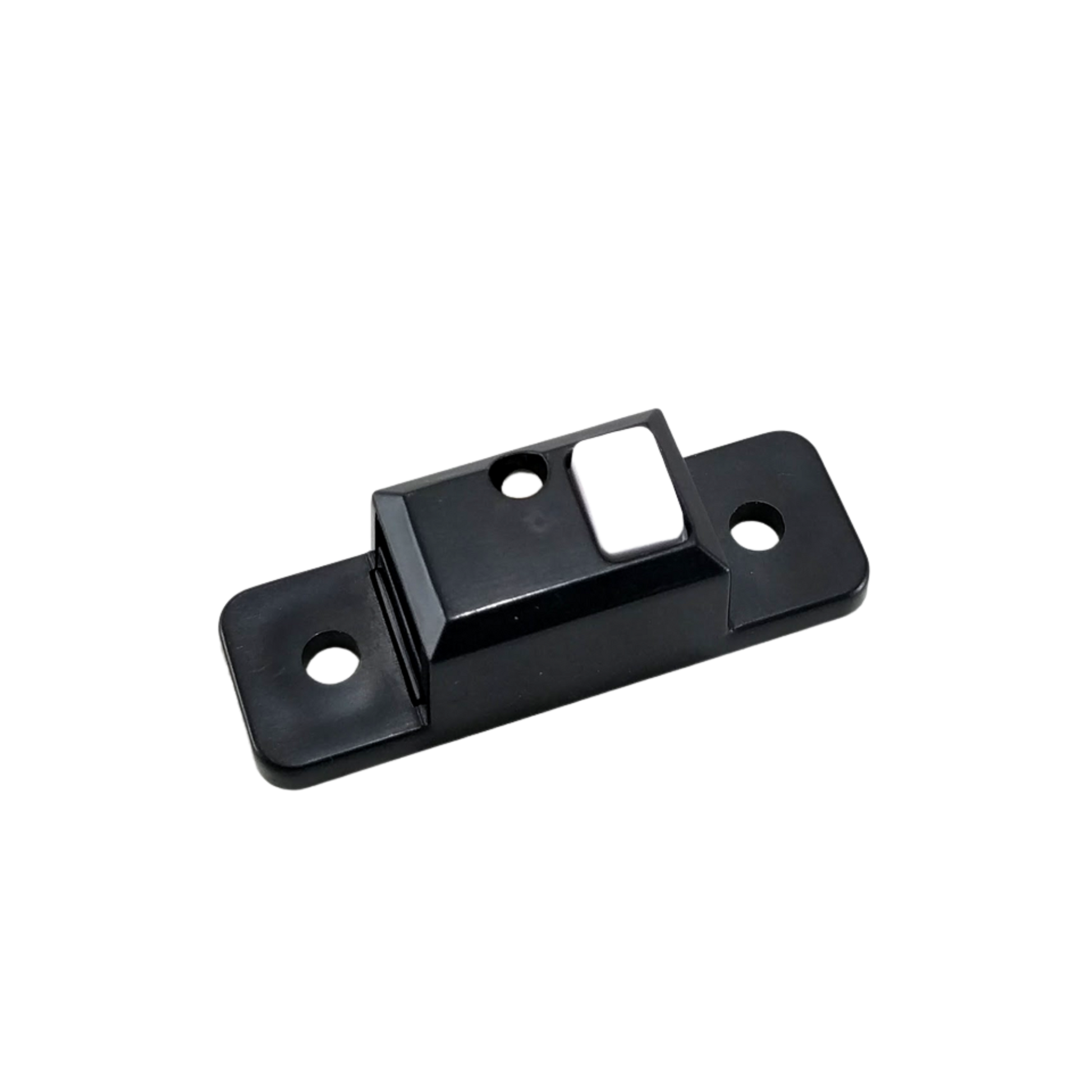

Rev Robotics Touch Sensor

Touch sensor is best used for user input, but can also be used as a limit switch.

Configuration

The REV Touch Sensor is a digital sensor that is wired to the N+1 channel on our standard 4-pin JST PH connector. In other words, the REV Expansion Hub digital ports are grouped with two input/output channels per port: 0-1, 2-3, 4-5, 6-7. In general we refer to each channel as N and N+1. When pressed, the touch sensor pulls the digital channel low from its default high state.

Kit Contents

• QTY 1 - Touch Sensor
• QTY 1 - Cable, 4-pin JST PH, 30cm

Documentation

• Touch Sensor Overview
• Touch Sensor Specifications

CAD & Drawings

• REV-31-1425 STEP File
• REV-31-1425 Drawing
