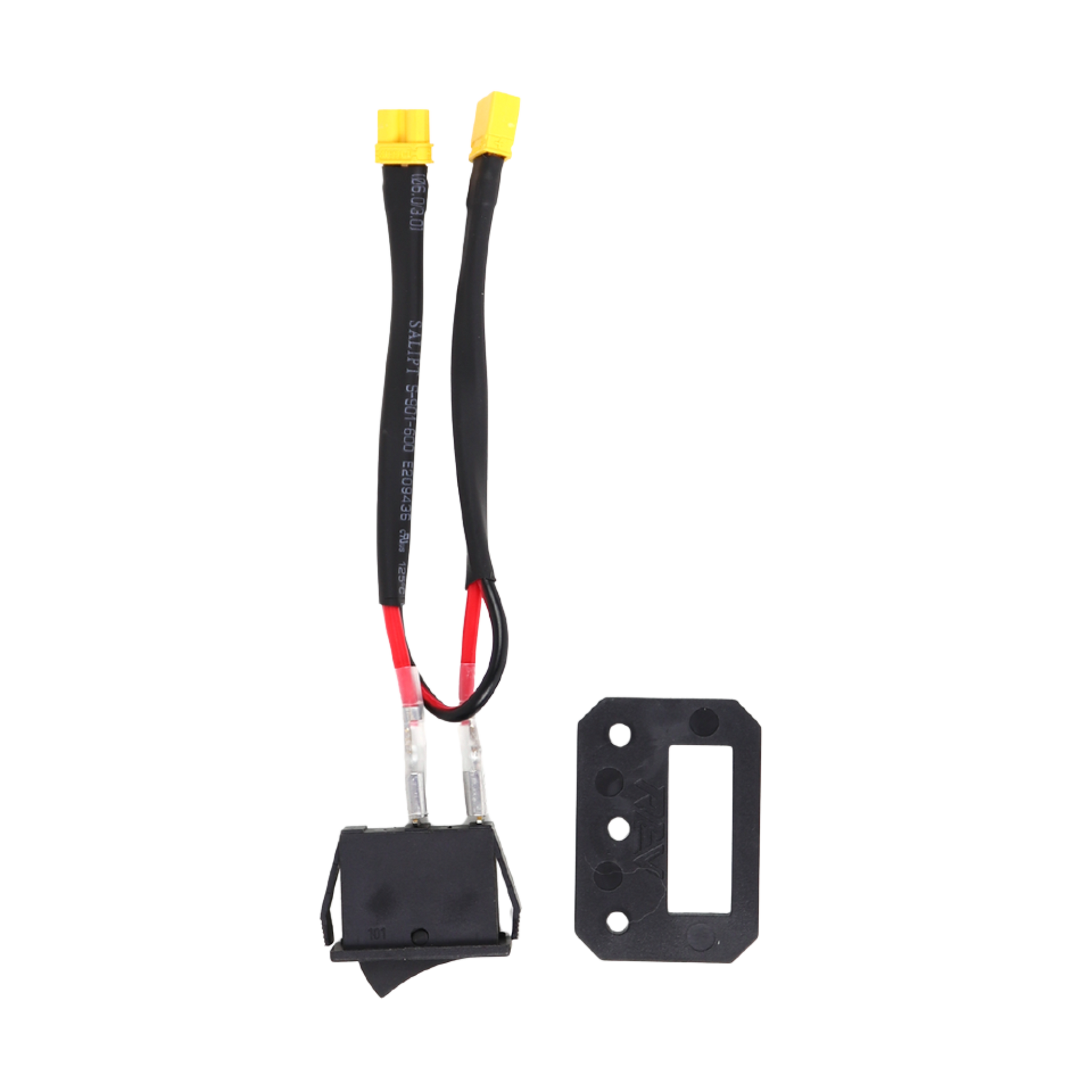

Rev Robotics Switch Cable and Bracket

Add this switch between your battery and Expansion Hub to have convenient on/off control of your robot. We recommend mounting the switch slightly recessed from the outside of your robot so that it's not accidentally turned off by another robot during a match.

Specifications

• Rated for >20A using a 12V battery
• Terminals are Male XT30(1) Female XT30(1)
• Panel mount in a rectangular hole 27.5mm x 10.6mm

Kit Contents

CAD & Drawings

• REV-31-1387 STEP File
• REV-31-1387 Onshape
