Rev Robotics

Rev Robotics Driver Hub

Rev Robotics Driver Hub

Rs. 36,250.00
Rs. 41,520.00 Rs. 36,250.00
Sale Sold out
Shipping calculated at checkout.

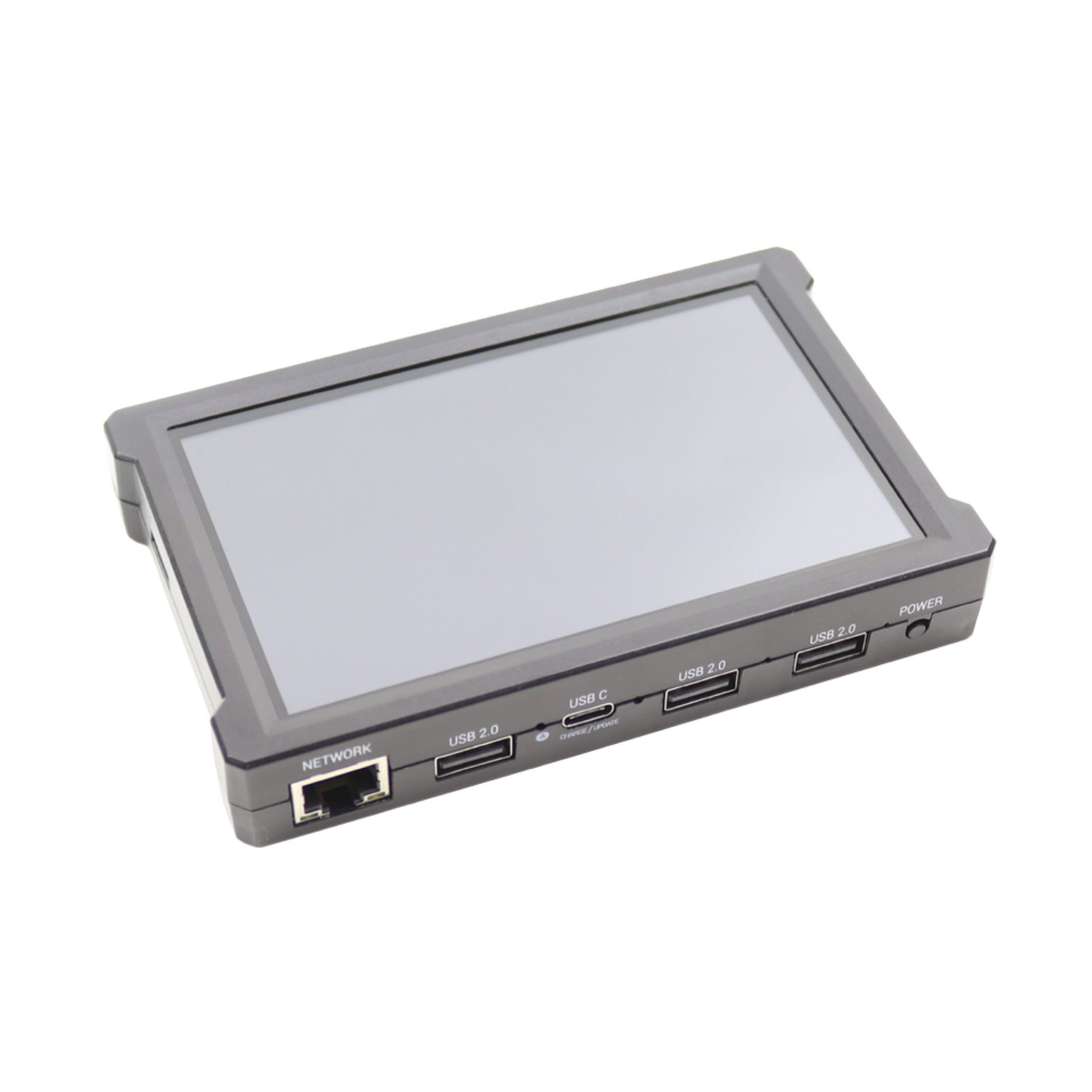

The REV Driver Hub is a compact mobile computing device designed for interfacing with the Control Hub (REV-31-1595). The Driver Hub was designed and built as an easy to use, dependable, and durable device for use in classroom and the competition. It features an Android operating system, built-in dual band Wi-Fi (802.11 ac/b/g/n/w), and support for many off-the-shelf gamepads and HID devices connected through built-in USB ports.

When the Driver Hub software is updated with new features, the device can receive a "field upgrade," through a fast and simple update through the REV Hardware Client.

The Driver Hub is an approved device for use in FIRST Global and FIRST Tech Challenge.

Specifications

  • A 5in 800x600 LCD Touchscreen display
  • 3 USB-A ports for connecting USB Controllers
  • 1 USB-C port for charging and updating
    • Supports fast charging over USB PD
  • 802.11 ac/b/g/n/w Wi-Fi
    • Dual-band 2.4 & 5 GHz
  • User replaceable 5040 mAH Li-ion battery
  • M3 Threaded inserts for mounting on a 16mm pitch
  • Physical Specifications:
    • Length: 3.375in
    • Width: 5.25in
    • Height: 1.0in
    • Weight: 9.8oz (278g)

Kit Contents

 SKU  PRODUCT NAME  PRODUCT QUANTITY
  REV-31-1596  Driver Hub  QTY 1
  REV-31-1876  Driver Hub Battery  QTY 1
   USB-A Wall Charger  QTY 1
   USB-A Male to USB-C Cable   QTY 1
