Rev Robotics 12V Slim Battery

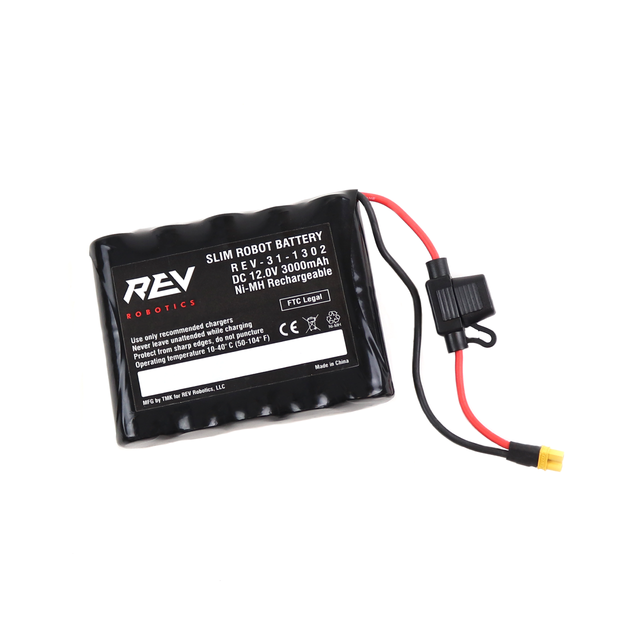

This 10-cell, 12V 3000mAh battery has a low profile configuration to make it easier to mount on a robot. The Slim Battery pack is wired with an XT30 male connector and an inline 20A replaceable ATM fuse. XT30 to Tamiya Adapter no longer automatically included as of 5/10/2017.

Specification

• Voltage: 12V
• Capacity: 3000mAh
• Weight: 567g
• Maximum Dimensions: 113.5mm x 90.5mm x 23mm
• Wire Gauge: 16 AWG
• Connector: XT30
• Replaceable Fuse: 20A ATM
• Maximum Discharge Rate: 10C
• While the battery cells are rated at a 10C (30A) discharge, the in-line fuse limits this to 20A.
• Wire Length (excluding XT30): 150mm

Best Practices

All rechargeable batteries have a finite lifespan. Factors that affect lifespan include the number of discharge/charge cycles and the average loading of the battery. The following best practices can help maximize the lifespan of your battery:

• Charge rate
• Minimum: 1.5A
• Maximum: 3.0A
• Recommended: 1.8A or 2.0A
• Do not overcharge
  • For example, running the robot under minimal load for a few minutes will not significantly discharge the battery.
• Disconnect the battery from the charger once it indicates a full charge.
• Typical charge time does not exceed 2 hours.
• Do not charge a battery that hasn't been discharged significantly.
• Minimum no-load voltage: 9.0V
  • For example, don't forget to unplug your battery after you are finished running the robot and don't run your robot until it completely stops responding!
• Discharging the battery past 9.0V can reduce the lifespan of the battery and can permanently damage the cells.
• Periodic dips below 9.0V when under load is expected and OK.
• Temperature
• Let the battery cool before and after charging.
• The battery may feel warm after heavy loading or after charging. This is normal.

CAD & Drawings

• REV-31-1302 STEP File
• REV-31-1302 Onshape
• REV-31-1302 Drawing
